Dispersion Kettle

Name: China Dispersion Kettle Manufacturers Suppliers Factory - Customized Service - Transocean
Brand: Transocean
SKU: 144122024

Transocean® dispersion kettle is applicable for mixing and dispersion of liquid-liquid or solid-liquid materials. The dispersion kettle is widely used in the processing of anti-rust paint, varnish, alkyd enamel, latex paint, color paste, ink, agrochemical, detergent, paper pulp and so on. Glad to provide cost-effective products and thoughtful services for you!

Send Inquiry

Content

Introduction:

Transocean^® dispersion kettle is applicable for mixing and dispersion of liquid-liquid or solid-liquid materials. The serrated dispersing disc is adopted as the dispersion device, which is mounted on the dispersing shaft and is driven by the motor. The dispersing speed is regulated by the inverter so as to provide different mixing velocity and share force at different processing stages. The explosion proof dispersion kettle is available as an option for operation in a hazardous area.

Applications:

Transocean^® dispersion kettles are widely used in the processing of anti-rust paint, varnish, alkyd enamel, latex paint, color paste, ink, agrochemical, detergent, paper pulp and so on.

Features:

●High shear force

●Material of wetted parts: galvanized steel carbon, SS420, SS304 or SS316L

●Mounting mode: on platform

Technical specifications:

Model	FF-0.5	FF-1	FF-2	FF-3	FF-4	FF-5	FF-6	FF-10
Main motor power (kW)	11	15	30	37	45	55	75	110
Dispersing speed (r.p.m.)	0-1450	0-1450	0-1450	0-1450	0-1450	0-1450	0-1000	0-1000
Speed regulation mode	By inverter
Tank volume (m3)	0.5	1	2	3	4	5	6	10
Dispersing disc dia. (mm)	250	350	400	450	500	550	600	700

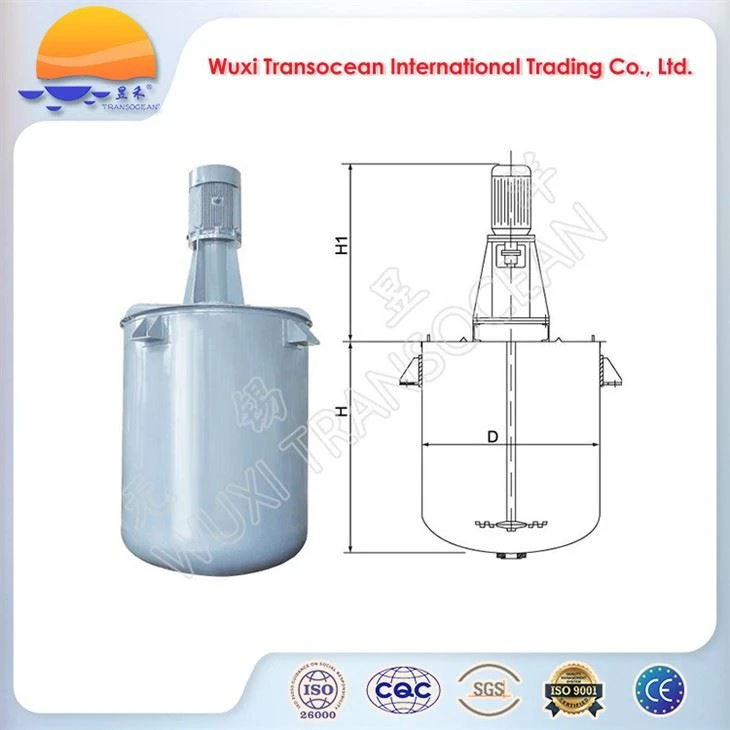

External dimension	D	800	1000	1400	1500	1600	1800	1900	2200
(mm)	D	800	1000	1400	1500	1600	1800	1900	2200
H	1000	1250	1575	1880	2180	2235	2360	2820
H1	850	1170	1380	1480	1570	1690	1740	1850
