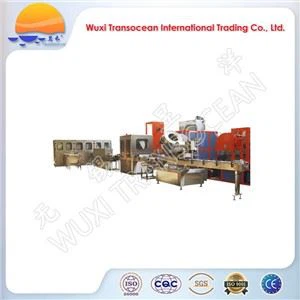

TRANSOCEAN® Automatic Two-Component Cartridge Filling Machines are specialized equipment designed to fill two different paste-like materials (Component A and Component B) into two separate chambers of the same cartridge (syringe), ensuring strict isolation between the two components before use.
TRANSOCEAN® Automatic Two-Component Cartridge Filling Machines are specialized equipment designed to fill two different paste-like materials (Component A and Component B) into two separate chambers of the same cartridge (syringe), ensuring strict isolation between the two components before use. The quantitative ratio of components A and B depends on the designs of the two chambers. The filling machines are widely used for precise quantitative packing of paste-like materials such as sealants, corner bonding adhesive, tile grout, electronic adhesive, thermal conductive adhesive, dental materials.
● Feeding System: Two independent feeding units deliver Components A and B to their respective filling stations.
● Conveyance and Positioning System: The automatic bottle conveyor transports empty cartridges/ syringes to the filling station and transfers filled bottles to the sealing station. The automatic plug-sorting device aligns and delivers plugs from the plug storage to the plug-pressing station.
● Quantitative Filling System: Two independent servo-driven filling systems precisely dispense Components A and B into their corresponding chambers.
● Plug-Pressing System: Two separate plug-pressing units insert plugs into the chambers of Components A and B for sealing.
● Control System: Human-Machine Interface (HMI), PLC, and corresponding control software.
● Coding System (Optional): A coding machine prints product batch numbers, production dates, and expiration dates on cartridge surfaces.
● Precise Control: Servo systems ensure precise dosing of Components A and B according to preset ratios.
● Anti-Curing Design: For fast-curing materials, optional cooling systems or inert gas protection (e.g., nitrogen purging) prevent adhesive reactions with moisture, air, or high temperatures during filling.
● Reliable sealing: Automatic plug-pressing tightly seals the chambers after filling.
● Cross-Contamination Prevention: Dedicated feeding, filling, and sealing units for Components A and B eliminate cross-contamination risks.
● Visual Control Interface: HMI + PLC with preset formulas (for different container types and ratios), supporting data traceability and production statistics.
● Provide images, composition, and viscosity of the product to pack.
● Provide images and dimensions of the dual-chamber cartridges/ syringes and plugs.
|
Model |
AV-02-300-B |
|
Power supply |
1P/220V/50Hz (customizable) |
|
Installed power |
5 kW |
|
Air Supply |
5~7 bar |
|
Air consumption |
<0.3m3/min |
|
Filling range (ml, in each chamber) |
~300 (adjustable) |
|
Dosing tolerance |
±0.5％ |
|
Processing capacity |
15~25 PCS/min |
|
Suitable containers |
400ml/ 600ml 1:1 2-component cartridges (customizable) |
|
Dimensions (L*W*H, mm) |
4500×2500*1500 |
|
N.W. (KGS) |
630 |
