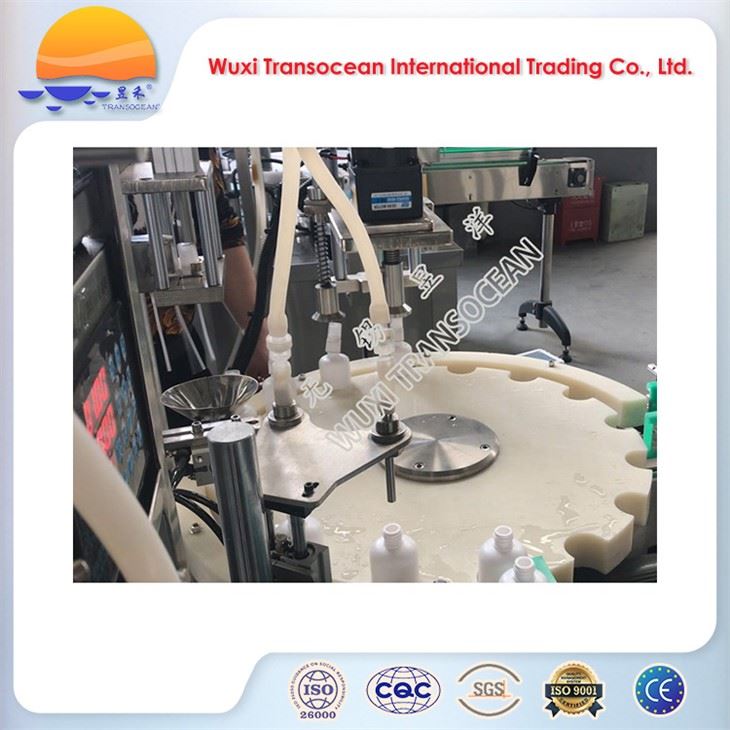

TRANSOCEAN® automatic filling machine for disinfectant consists of a container arranging table, two transmission lines, a volumetric filling unit, a capping unit and an electrical control panel. It is applicable for quantitative filling of disinfectant,detergent,fertilizer,cosmetics, pesticides, bactericides, water-soluble fertilizers, oral liquids, etc.
Introduction:
Applications:
TRANSOCEAN® disinfectant filling system is applicable for quantitative filling of disinfectant, detergent, fertilizer, cosmetics, pesticides, bactericides, water-soluble fertilizers, oral liquids, etc.
Features:
Wetted parts of the filling system are made of SS304 or SS316.
A PLC and a touch screen are used for operation.
Batch filling range can be adjustable within the range of 50-500ml or 1000-5000ml.
The anti-splash filling nozzles can be adjusted vertically to prevent splashing during the filling process.
GMP compliance
Advantages:
Friendly operation interface
Perfect filling accuracy
High filling capacity
Versatile use
Technical specifications:
Item | AV-02-500 | AV-04-5000 |
Container volume（ml） | 50-500 | 1000-5000 |
Quantity of filling nozzle | 2 | 4 |
Filling speed (PCS/h) | 1000-1500 | 1000-1500 |
Filling accuracy | ±0.5% | |
Power supply | 3PH/380V/50Hz (can be customized) | |
Air supply (MPa) | 0.4～0.6 | |
