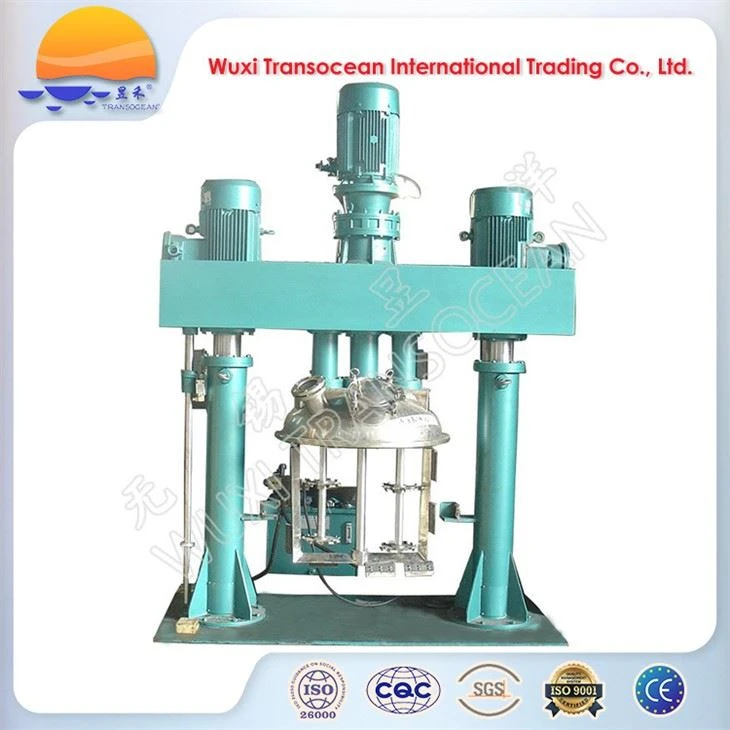

TRANSOCEAN® multifunctional dispersion mixer integrates high-speed dispersers and anchor agitator, which is suitable for mixing and dispersing viscous materials or thixotropic materials with a viscosity between 3,000cps-200,000cps. The mixer is widely used in the production of emulsion paint,coatings, putty, sealant,ink, plastic, artificial leather, etc..
Introduction
Wuxi Transocean International Trade Co., Ltd. is one of the leading manufacturers and suppliers of industrial mixing equipment in Wuxi city, Jiangsu, China. TRANSOCEAN® multifunctional dispersion mixer integrates high-speed dispersers and anchor agitator, which is suitable for mixing and dispersing viscous materials or thixotropic materials with a viscosity between 3,000cps-200,000cps. The mixer is widely used in the production of emulsion paint, coatings, putty, sealant, ink, plastic, artificial leather, etc.. There are two high-speed dispersing shafts. Each dispersing shaftis equipped with 2 layers of serrated dispersing discs, which shear and disperse the surrounding materials andcreate an axial flow in the mixing tank. The dispersing discs on the 2 dispersing shafts are staggered in height, so that the materials at different positions have the same chance of being sheared and dispersed. The anchor stirrer compulsively stirs the material near the wall of the mixing drum to form a radial flow in the vessel, and closely cooperates with the dispersing discs to ensure that the material at any position in the vessel can be evenly mixed and dispersed to form a uniform product. The all-round scraper can sweep away the material stuck to the wall of the vessel. Vacuum equipment is available as an option for simultaneous vacuum defoaming of the materials during the mixing process to prevent the materials from being oxidized by the air bubbles, thereby improving product quality and product appearance.
Advantages
●The entire operation process is carried out in a closed environment, which is free of dust and without dust and solvent evaporation.
●The mixer head is driven by 2 double-acting hydraulic cylinders, which can rise above the top of the vessel for easy insertion and removal of the vessel.
●The top, inner wall and bottom of the mixing tank are all processed by turning, with high concentricity and levelness. The mixing tank can work with a hydraulic discharge press to facilitate the discharging of products with poor fluidity.
Technical specifications
|
Model |
FS-2 |
FS-3 |
FS-5 |
FS-6 |
FS-8 |
FS-10 |
|
Mixing tank volume(m3) |
2 |
3 |
5 |
6 |
8 |
10 |
|
Mixing power(kW) |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
15 |
|
Mixing shaft speed(r.p.m.) |
34 |
31 |
31 |
31 |
25 |
22 |
|
Anchor mixer dia.(mm) |
1300 |
1500 |
1700 |
1700 |
1900 |
2100 |
|
Dispersing power(kW) |
30 |
55 |
90 |
110 |
132 |
160 |
|
Dispersing speed(r.p.m.) |
0-1450 |
|||||
|
Speed regulation mode |
by inverter |
|||||
|
Number of dispersing shaft |
2 |
|||||
Our services
●Free pre-sale consulting service
●Free tailored solutions according tousers' specific requirements
●Free adviceon layout of our equipment in users' workshop
●Free picking-up& drop-off service for the customers at Wuxi airport/ railway station
●Leading customers around our factory and demonstrating our products for free
●Sharing production progress at start of production, commissioningof machines, packaging and delivery for free
●Free photos and commissioning video of the equipment before packing
FAQ
●Q: Are you a manufacturer, trading company, or a third party?
A: We are a manufacturer. Our factories were set up in 2005.
●Q: What certificates are available for your products?
A: CE and SGS certificates.
●Q: How can you solve the problems with the use of your products encountered by your overseas customers in time?
A: We will respond within 24 hours after receiving the request from our customers. Initially, we will discuss the issue with our customers online to diagnose the problem. If it is caused by improper operation, we will guide our customers to operate the machine properly; if it results from the quality defect on the working part or wearing of our machine, we will deliver the spare parts by air/express ASAP for replacement and instruct our customers how to replace the defective part on line. If necessary, we will share a short video to demonstrate the replacement. One year warranty from the shipment date is provided for our machines.
