TRANSOCEAN® planetary mixer consists of two planetary blenders and one or two scraper agitators. It is applicable for mixing, dispersion, dissolution, reaction, homogenization and kneading of new energy battery, metal slurry, chemical, pesticide, pharmaceutical, food, building materials, and preparation of a variety of highly viscous products such as battery slurry, aluminum silver paste, silicone ink, ointment, adhesive, sealant, grease, cream cosmetics, etc.
Introduction

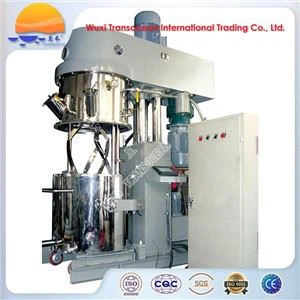

TRANSOCEAN® planetary mixer is a new type of high-efficiency multifunctional mixing equipment. There are two planetary stirrers (usually a multi-inclined mixer, twist impeller, or frame blender) and one or two scrapers. The stirrers revolve around the central axis of the material vessel while rotating at high speeds around their respective axes at different speeds, which contributes to complex movements of materials. The scraper rotates around the central axis of the tank to sweep off the materials from the tank wall. According to other applications, other types of agitators are provided as an option, such as dispersing discs, emulsifiers and so on. A vacuum system is provided for simultaneous vacuum defoaming operations to protect the products from being oxidized by air and therefore to improve the product quality. For processing of heat-sensitive materials, a jacket can be supplied for the vessel to cool or heat the material, or a mold temperature machine can be adopted to achieve constant temperature operations. Finished products are discharged by a hydraulic press.
Applications
TRANSOCEAN® planetary mixer is widely used in the processing of materials with a viscosity of up to 1,000,000 pcs and a solid content of up to 90%. It is applicable for mixing, dispersion, dissolution, reaction, homogenization and kneading of multi-component solid-solid phase, solid-liquid phase, liquid-liquid phase in the processing of new energy battery, metal slurry, chemical, pesticide, pharmaceutical, food, building materials, and preparation of a variety of highly viscous products such as battery slurry, aluminum silver paste, silicone ink, ointment, adhesive, sealant, grease, cream cosmetics, etc.
Features
● Planetary gear transmission is adopted to ensure high output torque.
● Compact structure
● Stirrers work in a sealed vessel.
● All wetted parts are made of mirror-polished S.S.304
● Very few residuals in the vessel
Advantages
● High energy efficiency
● Covering less space
● Environmentally friendly
Benefits for you
● Saving production costs
● Reducing plant investment
● Saving environmental protection expenditure
Technical specifications (for reference only)
|
Model |
XSJ-15 |
XSJ-30 |
XSJ-60 |
XSJ-100 |
XSJ-200 |
XSJ-300 |
XSJ-500 |
XSJ-1000 |
XSJ-1500 |
|
Vessel volume (L) |
15 |
30 |
60 |
100 |
200 |
300 |
500 |
1000 |
1500 |
|
Mixing power (KW) |
1.5 |
3 |
5.5 |
7.5 |
11 |
15 |
22 |
37 |
55 |
|
Revoluting speed(r.p.m) |
0～70 |
0～70 |
0～65 |
0～65 |
0～40 |
0～40 |
0～40 |
0～29 |
0～29 |
|
Rotating speed(r.p.m.) |
0～105 |
0～105 |
0～90 |
0～90 |
0～79 |
0～79 |
0～55 |
0～40 |
0～40 |
|
Scraping speed(r.p.m.) |
0～105 |
0～105 |
0～90 |
0～90 |
0～79 |
0～79 |
0～55 |
0～40 |
0～40 |
|
Dispersing power(KW) |
2.2 |
3.7 |
5.5 |
7.5 |
15 |
22 |
30 |
45 |
75 |
|
Dispersing speed (r.p.m.) |
0～3500 |
0～3500 |
0～3000 |
0～3000 |
0～2880 |
0～2880 |
0～1200 |
0～1000 |
0～900 |
|
Max. Vacuum (bar) |
-0.95 |
||||||||
Actual data should be customized according to the usage.
Quality assurance
●Strict contract auditing to assure the feasibility of each order.
●On-site inspection of all processes, inspection records are kept traceable for 3 years.
●All inspectors are skilled with international certificates.
●Qualified WPS and professional welders guarantee welding quality.
●100% inspection of finished sprouts before shipment.
Why choose us?
●We are one of the leading manufacturers and suppliers of mixers, grinding equipment, filters, and filling machines in Wuxi city, Jiangsu province, China.
●Comprehensive inspection before packing.
●We would provide door-to-door or door-to-port service upon customers' request.
●Contact us on WhatsApp or WeChat right away for perfectly cost-effective solutions.
FAQ
●Q: What is the delivery time of your machine?
A: Mostly, our machines can be delivered within 30 days after receipt of the down payment for the order, conditioned that all the technical specifications and requirements have been confirmed by the customers on time. The delivery time of some customized machines may be extended according to our negotiation with the customer.
●Q: What is the payment term acceptable to your company?
A: TT in advance, LC or Western Union.
●Q: What about the availability of the after-service?
A: Considerable after-sales services are available online or via email all through the service life of our machines. Your request will be replied to within 24 hours after we receive it.
