Silicone Oil Filling Machine For Refill Delivered For Jakarta On JAN. 15, 2022

Jan 17, 2022

A batch of silicone oil filling machines for pen refills were delivered for Jakarta on JAN. 15, 2022.

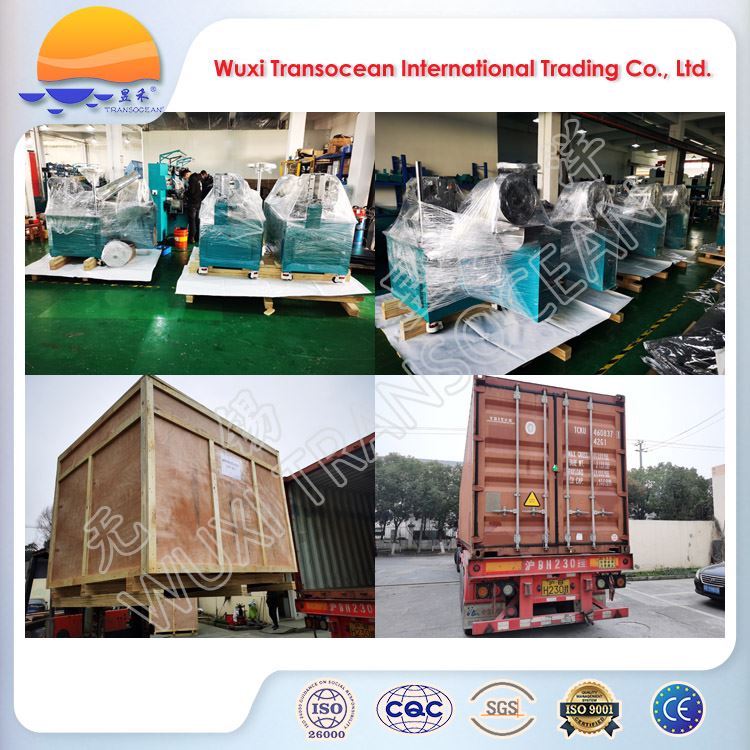

Container load 2

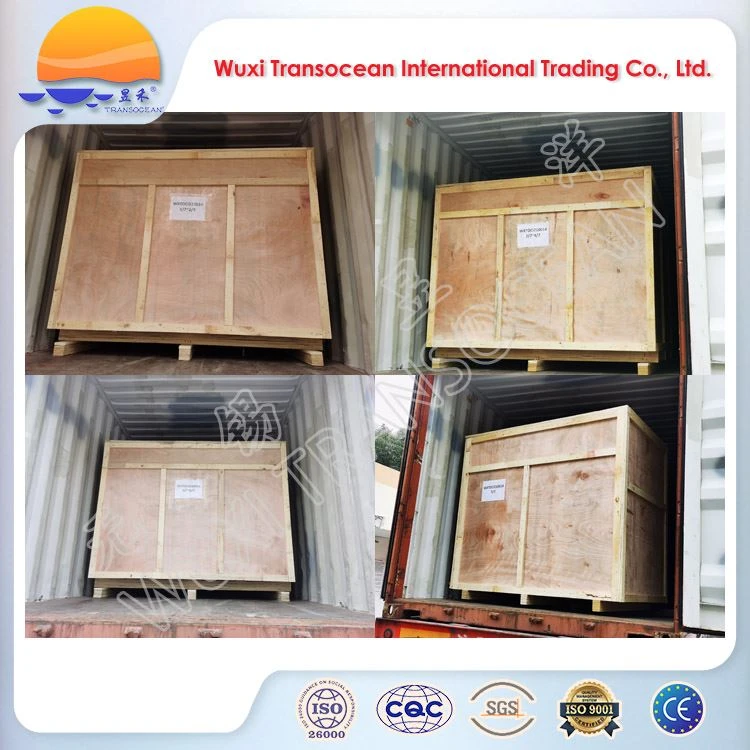

Container load 1

●Introduction:

TRANSOCEAN® silicone oil filling machines for pen refills are specially designed for automatic quantitative filling of silicone oil for pen refills after ink filling process. It consist of the refill silo, refill distribution & conveying unit, refill detector, silicone oil filling unit, finished refill collector and control cabinet.

●Flow chart:

Refill distribution→transfer by chain type conveyor→refill detecting→silicone filling→collection

●Main technical specifications:

Refill silo capacity: about 2,000 PCS

Processing capacity: 4PCS refills/ batch, 180~200PCS/ min

Drive of silicone in the filling nozzles: by compressed air

Silicone oil tank: atmospheric pressure type oil tank or pressure vessel for silicone oil

Air pressure in silicone oil tank (if any): 2bar

Storage capacity: about 1,000PCS

Air source pressure: 6bar

Installed power: about 3.5kW

If you are interested in Transocean® paint production equipment please contact us!
