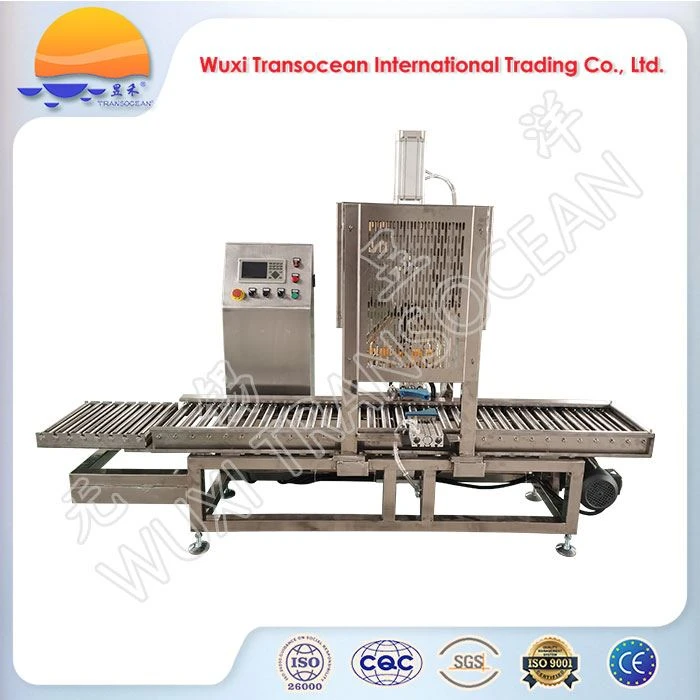

TRANSOCEAN® sealing plier type capping machine is applicable for lid sealing of steel buckets after filling. The steel lid and the bucket are automatically conveyed to the capping station and firmly sealed by the sealing plier driven by the pneumatic plunger and then output.
Description:
● TRANSOCEAN® sealing plier type capping machine is applicable for lid sealing of steel buckets after filling. The steel lid and the bucket are automatically conveyed to the capping station and firmly sealed by the sealing plier driven by the pneumatic plunger and then output.
Features:
● Lids can be sealed firmly, no leakage.
● Working height of the sealing plier can be adjusted within a certain range, which can be customized.
● Sealing plier type capping machine can work separately or together with various filling machines.
Technical specifications:
|
Applicable for lid of |
steel bucket |
|
Processing capacity(PCS/H) |
500-600 |
|
Power supply |
3P/380V/50Hz |
|
Compressed air |
0.1m3/min @ 0.4～0.6MPa |

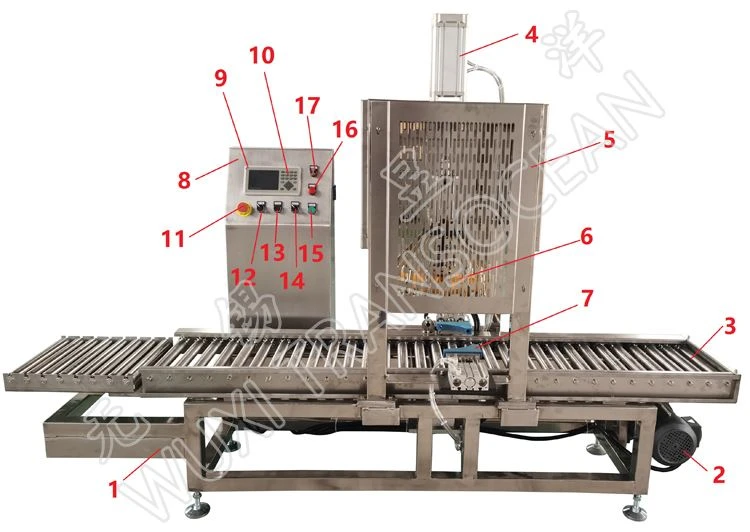

Main structure:
1: Rack
2: Drive motor for roller conveyor
3: Roller conveyor
4: Air cylinder for sealing plier
5: Safety mask
6: Sealing plier
7: Positioning clamp
8: Control panel
9: Weighing indicator
10: Key area
11: Emergency
12: Filling switch
13: Complement: add manually when Filling switch is OFF
14: Automatic capping swith
15: Manual capping
16: Capping indicator
17: Alarm: error in actual weight exceeds the tolerance

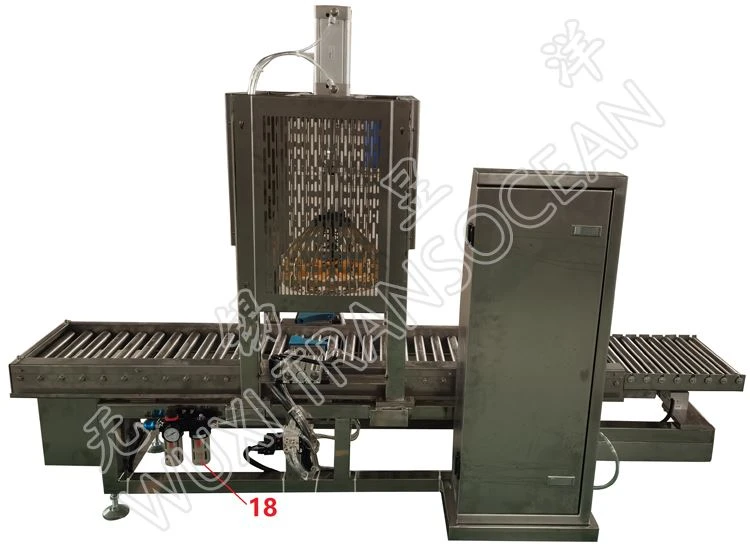

18: Oil-water separator for air source
