TRANSOCEAN® texture paint filling trolley is a movable weighing type texture paint filling module. The texture paint filling trolley can be quickly connected to the filling control box through an aviation plug, and works with the weighing filling platform to quantitatively pour texture paint, real stone paint and other high-viscosity products containing hard particles into plastic buckets and metal buckets.
Introduction
●TRANSOCEAN®texture paint filling trolley is a movable weighing type texture paint filling module. The texture paint filling trolley can be quickly connected to the filling control box through an aviation plug, and works with the weighing filling platform to quantitatively pour texture paint, real stone paint and other high-viscosity products containing hard particles into plastic buckets and metal buckets.
Features
●Flexible and maneuverable.
●Plug and play
●Suitable for filling of various open barrels
Advantages
1. Mobility: No need to carry heavy containers to fixed filling stations, reducing labor and risk of leaks.
2. Versatility: Can handle containers of various sizes, as well as high-viscosity granular materials that standard liquid fillers have difficulty handling.
3. Accuracy: Digital control ensures consistent filling weight, which is critical to product quality and customer trust.
4. Efficiency: Faster than manual filling, equipped with features such as foot pedals, allowing operators to focus on container operations.
5. Durability: Stainless steel contact parts resist corrosion from paint chemicals, ensuring a long service life.
Technical specifications
| Model Item |
SG-01-30 |
| Material loading mode | By gravity |
| Weighing range(kg) | 10-30 |
| Quantity of filling nozzle | 1 |
| Filling capacity(PCS/H) | 60-150 |
| Tolerance | ±0.2% |
| Power | AC110V～230V 50Hz |

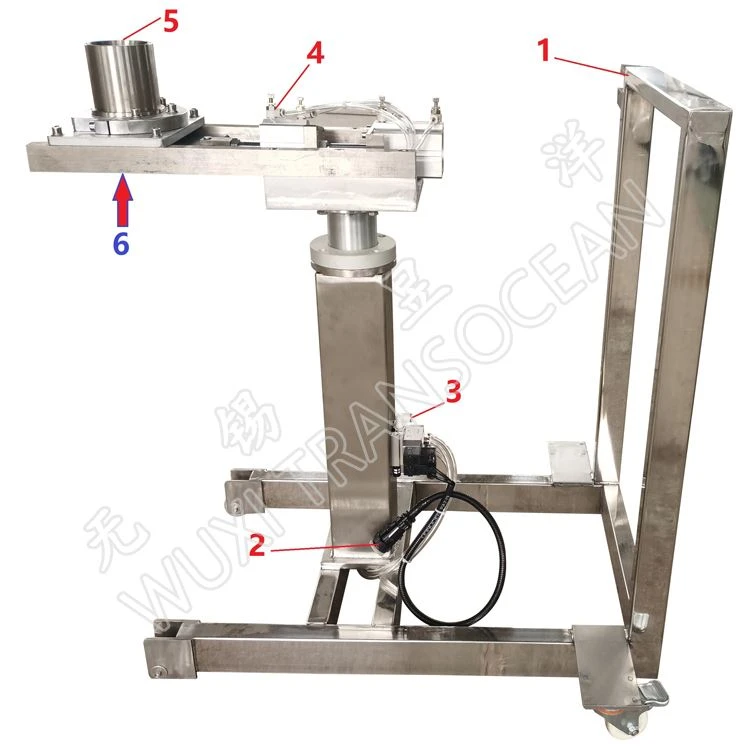

Structures
1: Trolley
2: Aviation plug
3: Air inlet
4: Air cylinder
5: Material inlet
6: Filling nozzle
