TRANSOCEAN® semi-automatic asphalt packing machines are applicable for filling of high temperature fluids such as asphalt (bitumen), oxidized asphalt, modified asphalt and alike with 25KG/40KG/50KG bags.Our asphalt filling machines have beenwell received by our clients in Kazakhstan, Saudi Arabia, UAE, Indonesia, Canada, Pakistan and so on.
Introduction

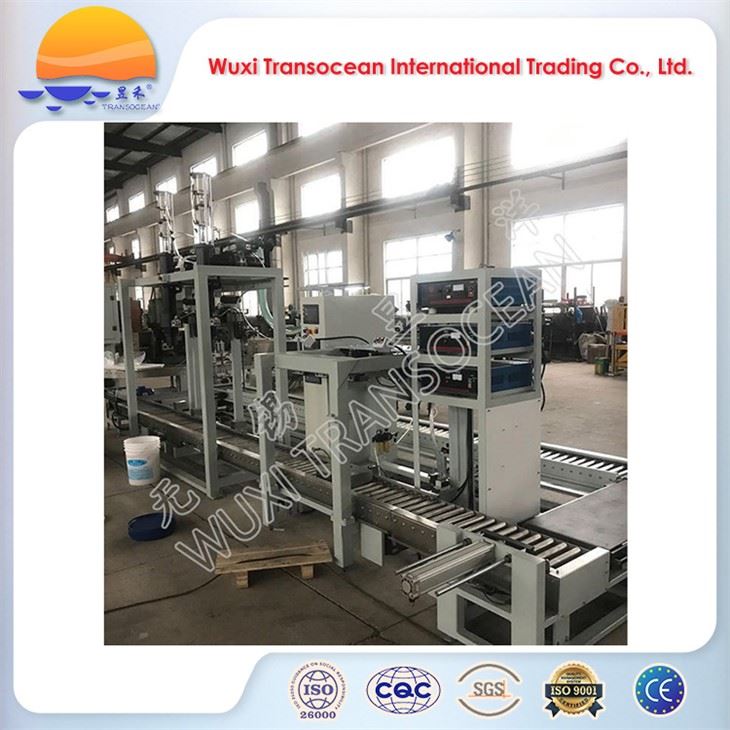

TRANSOCEAN® asphalt packing machines are specially designed for the packaging of high temperature fluids such as asphalt, oxidized asphalt, modified asphalt and alike. Transocean® asphalt packing machine consists of a roller conveyor for bags, an insulated material feeding unit, an insulated material buffer silo, an insulated filling unit, an ultrasonic sealing unit for bags, a finished product output conveyor belt, frameworks and a control system complete with instruments.
Applications
●TRANSOCEAN® asphalt packing machine is applicable for gravimetric filling of high temperature fluids such as asphalt, oxidized asphalt, modified asphalt and alike with 25KG/40KG/50KG bags.
Features
●The unfolded fusible bags in supporting steel buckets are transferred by conveyor rollers from the bag loading port to the filling station.
●Insulated filling nozzles and insulated material feeding pipes are supplied to ensure heat preservation of the asphalt to pack.
●Asphalt is packed with fusible bags which can be melted together with asphalt at the use site.
●Mettler Toledo load cell and GM controller are adopted to conduct quantitative filling.
●The filling nozzles are equipped with a quick filling valve and a slow filling valve to ensure filling speed and filling accuracy.
●The photoelectric sensor and the weighing controller are used to jointly control the start of the filling nozzles. The nozzles don’t start until there are packaging bags & supporting steel buckets that meet the set weight range on the filling platform under the filling nozzle.
●Filled asphalt bags are passed on to the sealing station and be sealed by the ultrasonic sealing device.
●Finished asphalt bags in steel buckets are conveyed to the download platform by conveyor rollers and then are transferred to collecting station by the belt conveyor.
Advantages
●High packing capacity with perfect filling accuracy
●Greatly reduce labor intensity and cut down production costs.
●Firm and reliable sealing prevent asphalt leakage
●Protect operators from being burned by high temperature.
Technical specifications
Item | Specifications |
Model | SH-02-25/40/50 |
Packing specification | Fusible composite plastic bags (25kg/40kg/50kg) |
Quantity of filling nozzle | 2PCS |
Packing capacity | 250~300 bags/h |
Weighing tolerance | ±0.2% |
Power supply | AC 3P/380V/50Hz (can be customized) |
Compressor air supply | 0.25 m3/min @ 4～6 bar |
Flow rate of asphalt (m3/h) | 15～20 |
Packing machine power (kW) | ≤2 |
Ambient temperature | 0～40℃ |
Design temperature (℃) | ≤130℃ |
Asphalt temperature (℃) | 90~120 |
Heating mode | by thermal oil or by steam |
Outline dimension (L×W×H, mm) | 5,500×1,700×2,300 |
N.W. (kg) | 2500 |
Our Advantages
●Extensive production experience:
Wuxi Transocean International Trading Co., Ltd. have been specialized in the manufacture and supply of dosing systems, industrial mixing equipment, grinding equipment, filtration equipment and packaging equipment for more than ten years.
●Comprehensive production facilities:
Our factories have lathe, digital display milling machine, planer, digital display grinder, drilling machine, machining center, roller press, laser welding machine and other advanced equipment.Our mechanical maintenance engineers carry out the maintenance of the processing equipmentperiodically to ensure all the equipment perform well.
●Quality sources:
Mostly steel materialsmade by top steel factories in China, such as BAO STEEL, SHA STEEL, TAI STEEL, NORTHEAST SPECIAL STEEL are adopted for the duplication of our machines. Usually ABB/SIEMENS/WANNAN motors, ABB inverters, SCHNEIDER/CHNT/DELIX electric components, SIEMENS/DELTA touch screens, DELTA PLCs and AirTAC pneumatic components are selected for the drive and control of our machines.
●Rigorous design, manufacturing, and inspection procedures:
Our products are designed according to our factory standard or customer’s requirement and produced according to the design strictly. All our products are tested before delivery. Comprehensive inspections of our products are conducted to ensure all are qualified before shipment.
FAQ
●Q:Are you a manufacturer, trading company or a third party?
A:We are a manufacturer.Our factories wereset up in 2005.
●Q:Where is your factory?
A:Our factories’ address:
No. 198, Qinglongshan Road, Wuxi City, Jiangsu Province, China
No. 9, Yuefa Road, YuechengTown,Jiangyin City, Jiangsu Province, China.
●Q:How can I get to your factories?
A:Our factoriesare near Wuxiairport/ train station.We can pick you up at Wuxi airport/ train station.
●Q:If I need to stay in your place for some days, is that possible to book the hotel for me?
A: Sure. Just tell us your preference on the hotel.
