Detergent Filling Machine

Introduction:

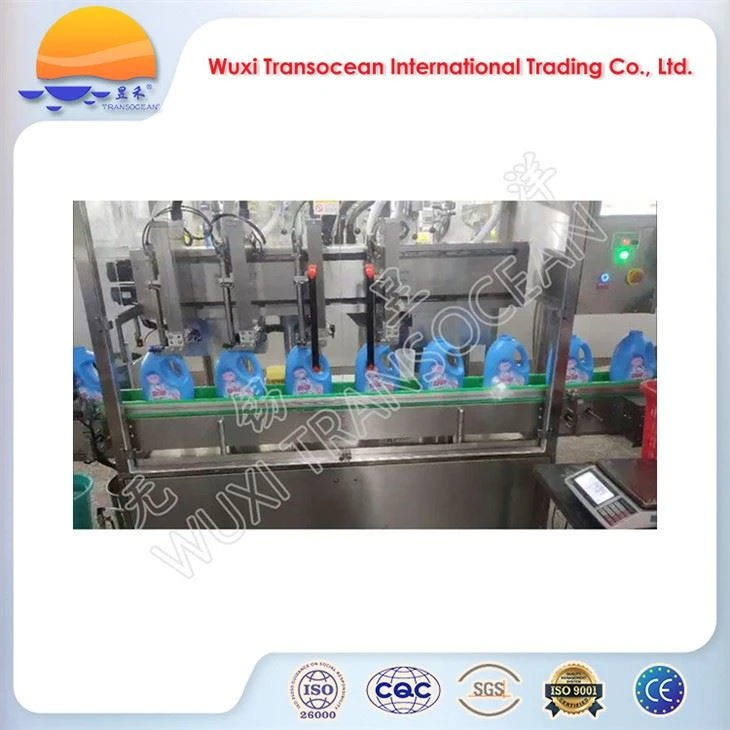

TRANSOCEAN^® automatic follow-up detergent filling machine consists of a material feeding device, lateral moving devices, 4 filling nozzles & bottle clamps, 4 cap placing devices, 2 cap screwing devices and a continuous conveyor. The filling unit and capping unit are driven by servo systems to move laterally synchronously with the bottles. On the running conveyor, each 4 adjacent containers are divided into a group according to the number of the filling nozzles and are followed by 4 filling nozzles irrespectively. When a filling round is over, the filling nozzle will automatically reset to prepare for the next filling round. The capping unit goes on like this. The container conveyor runs continuously during filling and capping. The filling machine characterizes excellent production efficiency, less space occupation, lower production cost and great economic benefits. According to process requirements, aluminum foil sealing machine, labeling machine, coding machine, cartoning machine and palletizing machine are available as an option.



Applications:

TRANSOCEAN^® automatic follow-up detergent filling machines are widely used in automatic quantitative packaging of liquid materials such as laundry detergent, disinfectant, hand sanitizer, softener, mouthwash, shampoo, shower gel, toilet cleaner, medicine, pesticides, liquid suspension fertilizer, alcohol, beverages, motor oil, lubricating oil, edible oil, etc. .



Features:

●A servo motor is used to control the lateral moving device, so that bottle neck clamping device equipped with a flexible concave arc-shaped chuck can clamp the bottle neck and move synchronously with the bottle. Then the submersible filling nozzle submerges into the bottle for automatic quantitative filling.

●Four metering plungers are used to control the filling action to realize automatic quantitative filling.

●A servo motor is used to control the lateral moving device, so that the cap placing device moves synchronously with the bottle neck, and the cap is accurately put on the bottle.

●A servo motor is used to control the lateral moving device, so that and the container clamping device equipped with a flexible chuck can clamp the container and the cap screwing device can move synchronously with the container and then screw the cap tightly.

●The filling machine automatically detects the running speed of the containers, follows the containers, and carries out the filling and capping synchronously when the container conveyor runs continuously.

●The touch screen and PLC facilities visual and convenient operation as well as automatic counting.

●With frequency conversion control the production speed is adjustable steplessly.

●20 formulas can be stored in the control system, which is easy to call.

●When changing filling containers of different shapes and specifications, the height of the container guardrail and conveyor can be adjusted with one key. And the specifications of the containers can be saved and be called in the future.

●With the piston and three-way valve, it is convenient to clean without disassembly.

●The working parts in contact with the packing media are made of SS316, and the surface of other parts is made of SS304.



Advantages:

●All material contact parts are made of SS316 to avoid being corroded by strong corrosive alkaline or acidic materials, and at the same time to avoid protect the packing media from being contaminated.

●A photoelectric sensor is adopted on the follow-up filling device to automatically track and locate the containers.

●Non-stop filling and capping, great processing speed.

●Touch screen, PLC and frequency conversion control result in perfect filling accuracy.

●The flexible clamp prevents the bottle from being injured while clamping the bottle.

●A photoelectric sensor is adopted on the follow-up cap placing device to automatically track and locate the bottle for accurate cap placing.

●A photoelectric sensor is adopted on the follow-up cap screwing device uses a photoelectric sensor to automatically track and locate the cap, and tighten the cap appropriately. The torque value and capping speed can be set on the touch screen.

●It is easy and convenient to clean.



Technical specifications:

Item	Specifications
Quantity   of filling nozzle	4PCS
Packing   specification	0.5-5L
Filling   accuracy	±1%
Filling   speed	30-40 PCS/min
Power   supply	single-phase/220V/50Hz   (customizable)
Air source	4-6bar

Our services：

●Free pre-sale consulting service

●Free tailored solutions according tousers’ specific requirements

●Free adviceon layout of our equipment in users’ workshop

●Free picking-up& drop-off service for the customers at Wuxi airport/ railway station

●Leading customers around our factory and demonstrating our products for free

FAQ：

●Q:What about the availability of the after-service?

A: Considerable after-services are available on line or via email all through the service life of our machines. Your request will be replied to within 24h after we receive it.

●Q:How can I trust your company?

A: We have been engaged in this business line for about 20 years. Our products have been well received by a lot of clients distributed in many countries. We wouldn’t like to play with our established business standing for a certain order. If we are not able to supply the satisfactory products for some customers we would rather decline the order. We are an AUDITED SUPPLIER audited by SGS-CSTC. All our machines have pass CE certification.

●Q: How is your price level?

A: At an average level in China. We don’t provide cheap goods, for that is not our aim.
