Gravimetric Filling Machine

Introduction:

●TRANSOCEAN^® gravimetric filling machine consists of the weighing type filling unit and the disc type capping unit, which is applicable for quantitative packing of various liquids with open containers in the production of paint, ink, thinner, oil, etc.



Features:

●Measuring mode of filling media: by load cell and weighing indicator

●Excellent weighing error: static error ≤0.13%, dynamic error ≤0.2%.

●TRANSOCEAN^® gravimetric filling machine can be connected to the computer in the central control room (user selection) to realize modern management.

●Out-of-tolerance alarm function, upper tolerance and lower tolerance can be set separately.

●20 formulas can be stored to facilitate the filling of materials of different ranges.

●Jog feed function is available.

●Password is available to protect the weighing instrument setting, which can be modified.

●Flexible and convenient installation, small footprint.



Technical specifications:

Model Item	SG-01-5	SG-01-10
Weighing range(kg)	0.2-5	0.8-10
Quantity of filling nozzle	1	1
Filling capacity(PCS/H)	300-350	250-350
Tolerance	±5g	±10g
Power supply	AC110V～230V 50Hz
Compressed air	0.1m3/min @ 0.4～0.6MPa
Working temperature	0℃～40℃
Pressure at material inlet	≤2bar



Structures of TRANSOCEAN^® gravimetric filling machine：



Rmark：

1: Control panel

2: Buffer tank

3: Filling nozzle

4: Handwheel for height adjustment

5: Lid press

6: Handle for lid press operation

7: Handwheel for height adjustment

8: Oil-water separator for air source

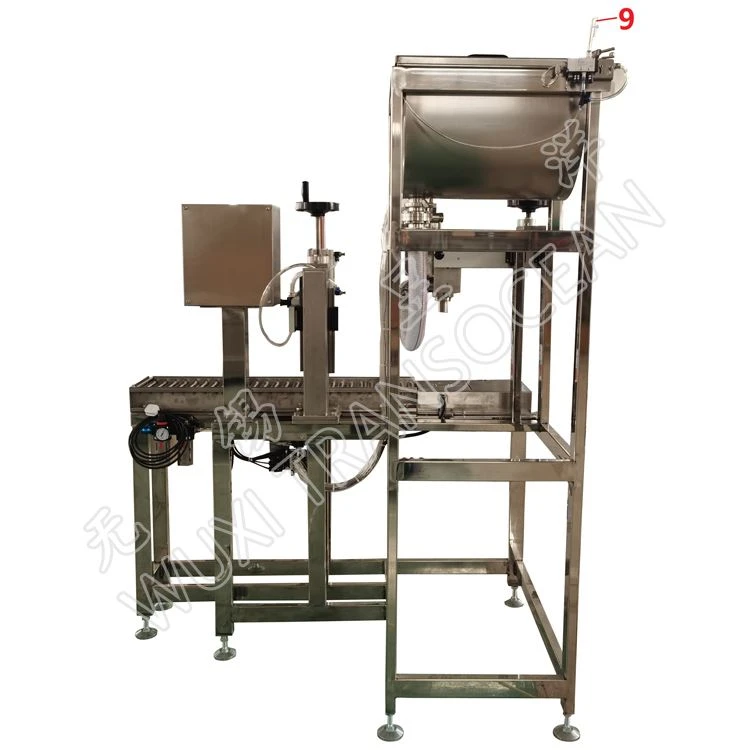

9: Air tube for material feed pump/valve

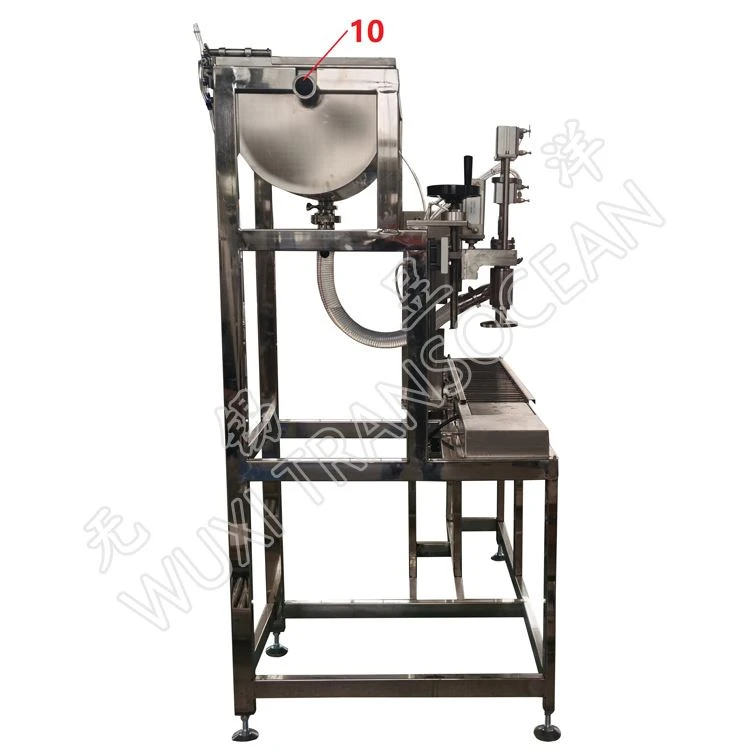

10: Material inlet
