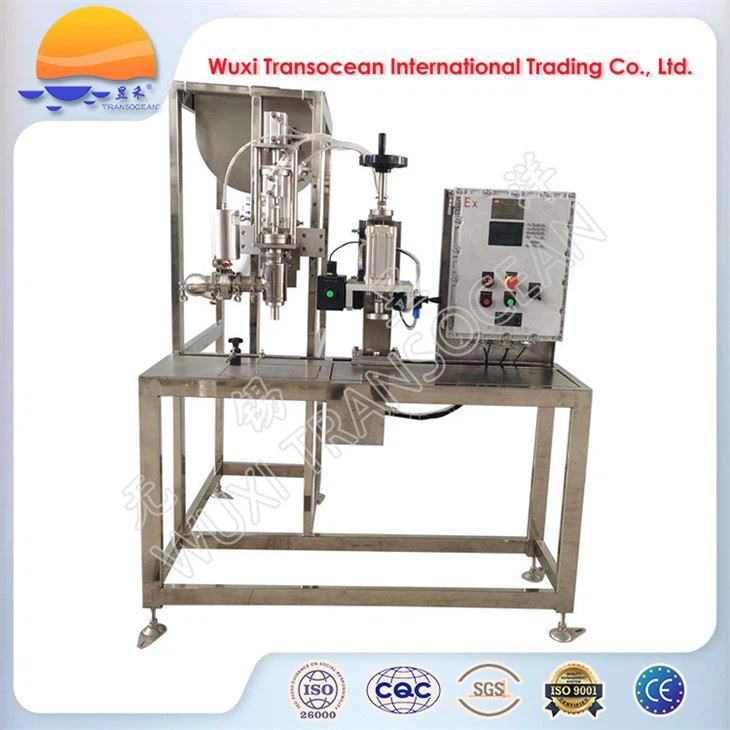

TRANSOCEAN® varnish filling machine consists of a material buffer bin, a filling unit and a capping unit, which is suitable for quantitative filling of medium and low viscosity materials such as varnish, alkyd paint, wood paint, latex paint, epoxy floor paint, marine paint, ink, chemical solvent, glue, etc.
Introduction
Wuxi Transocean International Trade Co., Ltd. is one of the leading manufacturers and suppliers of filling machines in Wuxi city, Jiangsu, China. TRANSOCEAN® varnish filling machine consists of a material buffer bin, a filling unit and a capping unit, which is suitable for quantitative filling of medium and low viscosity materials such as varnish, alkyd paint, wood paint, latex paint, epoxy floor paint, marine paint, ink, chemical solvent, glue, etc.
The packing media enter the material buffer bin via the material inlet. The bin is equipped with a level gauge and a mechanical valve. When the liquid level in the silo is lower than the upper liquid level, the mechanical valve opens to feed material into the buffer silo. When the liquid level in the silo reaches the upper liquid level, the mechanical valve is closed to stop feeding. The bin is connected to the filling nozzle via a hose. When the weighing platform detects a filling container that meets the system's preset tare weight, the filling nozzle is driven by a cylinder to automatically dive into the can mouth and start filling. The filling process is controlled by the load cell, weighing control instrument and PLC. When the filling quantity reaches the preset value, the control system automatically closes the filling nozzle, ends filling process, and automatically resets the filling nozzle. Then put the lid onto the can mouth, put the full can beneath the pressing disc of the capping station, and pull the capping handle by hand. The cylinder drives the pressing disc down for capping, and then automatically reset. The finished product is then removed manually.
Features
● The weighing station is equipped with a container positioning device so that the mouth of the container is aligned with the filling nozzle.
● The filling machine does not work when there is no container that meets the preset tare weight on the weighing platform.
The submersible filling nozzle is adjustable vertically to adapt to containers of different specifications.
● The filling process is divided into two steps: fast and slow.
● The explosion-proof control panel is adopted.
● Up to 20 recipes can be stored in the weighing controller for recall.
● The height of the pressing disc is adjustable to adapt to containers of different specifications.
Advantages
● Suitable for operation in hazardous areas where explosion-proof is required.
● All parts in contact with materials are made of SS304 material, which can withstand the corrosion of common paint.
● The modular design is adopted for all material contact parts adopt which are connected by quick joints, which is convenient for disassembly and maintenance.
● The material contact parts are easy to clean.
● The container positioning device is easy to operate.
● There is no leakage during the filling process and no pollution to the environment.
Technical specifications
● Filling specifications: 0.5kg-10kg
● Filling accuracy: ±5g
● Number of nozzle: 1
● Filling speed: 250-350PCS/h
Our Advantages
● Extensive production experience:
Wuxi Transocean International Trading Co., Ltd. have been specialized in the manufacture and supply of dosing systems, industrial mixing equipment, grinding equipment, filtration equipment and packaging equipment for more than ten years.
● Comprehensive production facilities:
Our factories have lathe, digital display milling machine, planer, digital display grinder, drilling machine, machining center, roller press, laser welding machine and other advanced equipment.Our mechanical maintenance engineers carry out the maintenance of the processing equipmentperiodically to ensure all the equipment perform well.
● Quality sources:
Mostly steel materialsmade bytop steel factories in China, such as BAO STEEL, SHA STEEL, TAI STEEL, NORTHEAST SPECIAL STEEL are adopted for the duplication of our machines. Usually ABB/SIEMENS/WANNAN motors, ABB inverters, SCHNEIDER/CHNT/DELIX electric components, SIEMENS/DELTA touch screens, DELTA PLCs and AirTACpneumatic components are selected for the drive and control of our machines.
● Rigorous design, manufacturing, and inspection procedures:
Our products are designed according to our factory standard or customer's requirement and produced according to the design strictly. All our products are tested before delivery. Comprehensive inspections of our products are conducted to ensure all are qualified before shipment.
FAQ
● Q:What is your minimum order quantity, can you send me samples?
A:Our Min. OQ is 1 set.As our productsare machines, it's hard to provide samples.Instead,we would provideour catalog and you are also to visit our factories.
● Q:What certificates are available for your products?
A: CE and SGS certificates.
● Q:What is the delivery time of your machine?
A: Mostly, our machines can be delivered within 30 days after receipt of the down payment for the order conditioned that all the technical specifications and requirements have been confirmed by the customers on time.Delivery time of some customized machine may be extended according to our negotiation with the customer.
