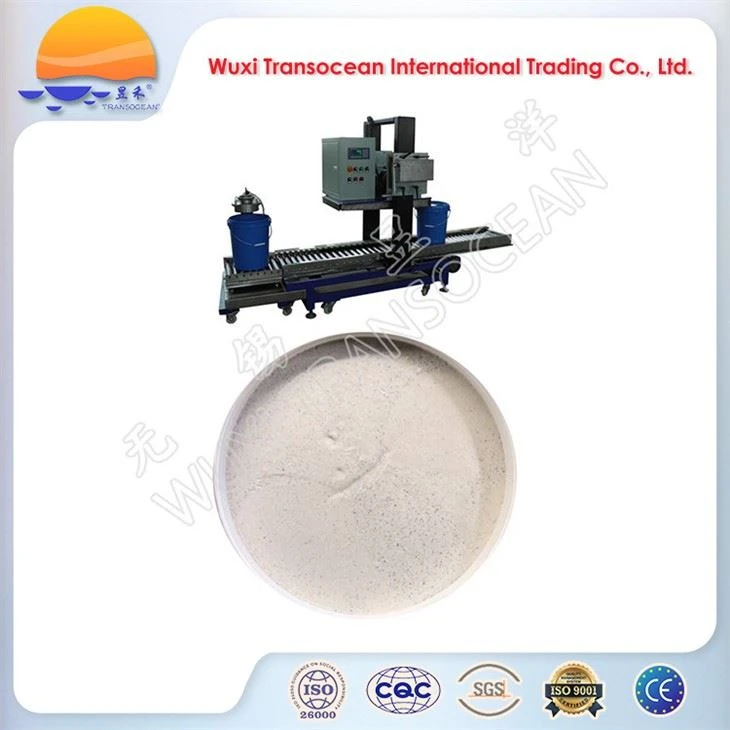

TRANSOCEAN® texture paint filling machine filling machines are applicable for quantitative filling of texture paint, natural stone coating and alike. We are ready to supply quality filling machines and thoughtful service for you at any time.
Introduction

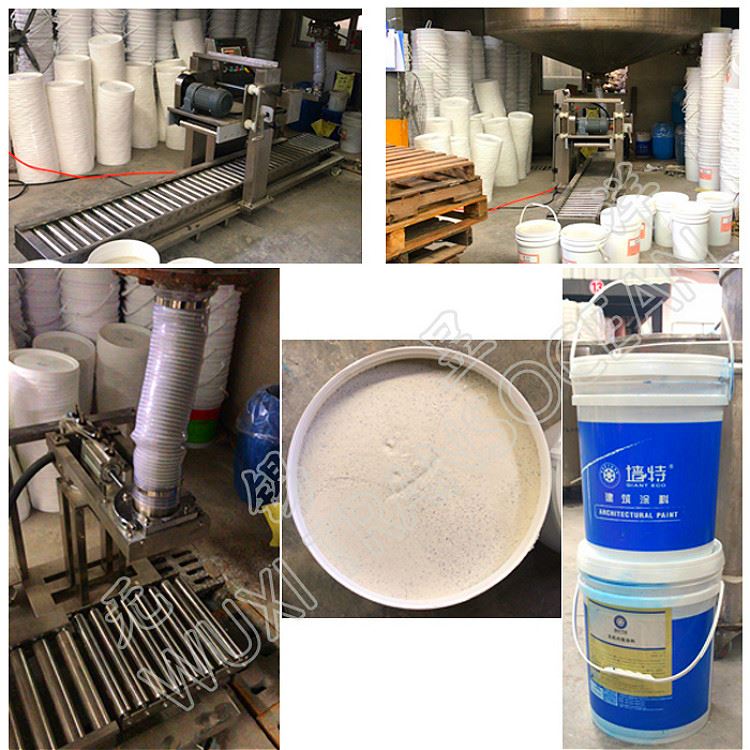

TRANSOCEAN® texture paint filling machine filling machines are applicable for quantitative filling of texture paint, natural stone coating and alike. It consists of a filling unit and a capping unit. The filling process is controlled by the Autonics photoelectric sensors, METTLER TOLEDO load cells and GM weighing controller. Then the full buckets will be transferred to the capping unit for automatic capping by the automatic conveyor. At last the finished product will be unloaded by hand. Automatic stacker completed with a robot is available as an option.
Advantages
● The special filling nozzle for texture paint is adopted, which can withstand the abrasion of the quartz sand in texture paint.
● The mobile filling trolley is connected to the weighing controller through an aviation plug which can be quickly put into operation, and easy to clean after use.
● Modular design is adopted for the material contact parts, which can be quickly disassembled and assembled.
Technical specifications
| Item | Specifications | |
| Quantity of filling nozzle | 1PC | 2PCS |
| Material inlet at filling nozzle | Ø100 | |
| Packing container | Conical plastic bucket with flat lid | |
| Packing specification | 5KGS~50KGS | |
| Filling accuracy | ±2‰ | |
| Filling speed | 200~400 PCS/h | 400~700 PCS/h |
| Power supply | single-phase/220V/50Hz (customizable) | |
| Air source | 4-6bar | |
Remark
● Feeding method: by gravity of texture paints from mixing tank above the filling trolley.
● Height of the outlet of the mixing tank: Min. 1500mm from the ground to the lowest point of the outlet.
Operational precautions
1. Cleaning: Flush the system with solvent or water (depending on the paint type) regularly to prevent accumulation of dried paint.
2. Pump selection: Select the appropriate pump type based on the particle size and viscosity of the paint (e.g., avoid using gear pumps for paints with large, sharp particles, as these particles may wear the gears).
3. Safety: Operators should wear protective gear (gloves, goggles) to avoid contact with chemicals; ensure good ventilation for solvent-based paints.
Our services
●Free pre-sale consulting service
●Free tailored solutions according tousers' specific requirements
●Free adviceon layout of our equipment in users' workshop
●Free picking-up& drop-off service for the customers at Wuxi airport/ railway station
●Leading customers around our factory and demonstrating our products for free
●Sharing production progress at start of production, commissioningof machines, packaging and delivery for free
FAQ
●Q:Are you a manufacturer, trading company or a third party?
A:We are a manufacturer.Our factories wereset up in 2005.
●Q:What is the delivery time of your machine?
A: Mostly, our machines can be delivered within 30 days after receipt of the down payment for the order conditioned that all the technical specifications and requirements have been confirmed by the customers on time.Delivery time of some customized machine may be extended according to our negotiation with the customer.
●Q: Can different models of your machines be mixed in one container?
A: Sure.We offer flexible MIQ for customized products. Different machines can be mixed in one container and we would think over how to take full use of the shipping space to save freight for our customers when we design the machines and the packing materials.
|
|
|
|
|
|
