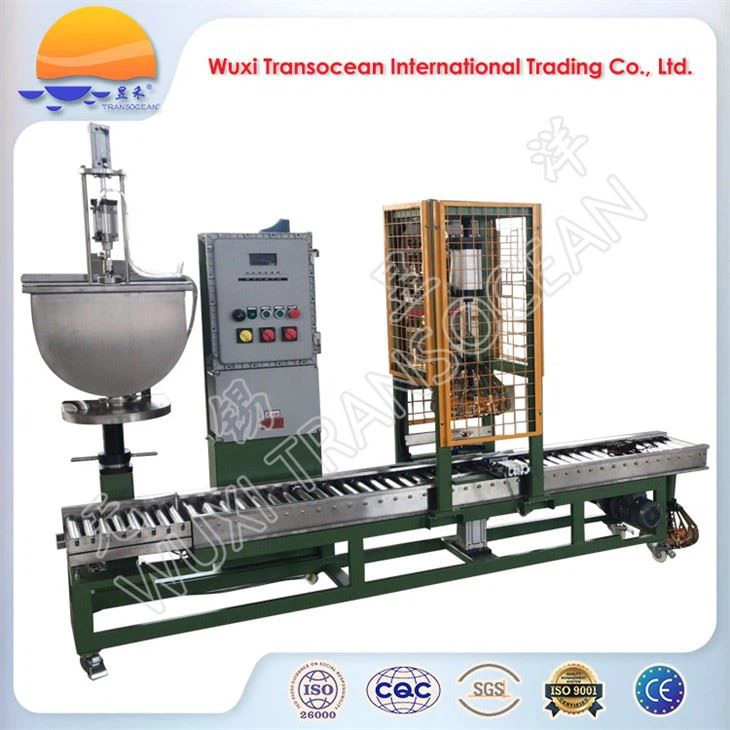

TRANSOCEAN® Alkyd paint filling machines are gravimetric explosion-proof filling equipment, which are suitable for quantitative filling of alkyd enamel, alkyd anti-rust primer, alkyd varnish, alkyd blending paint, epoxy resin coating, resin, adhesive, ink, etc. According to the specification of the filling containers, the alkyd paint filling machines can be divided into two models: 1L-5L and 10L-25L.
Introduction
TRANSOCEAN® Alkyd paint filling machines are gravimetric explosion-proof filling equipment, which are suitable for quantitative filling of alkyd enamel, alkyd anti-rust primer, alkyd varnish, alkyd blending paint, epoxy resin coating, resin, adhesive, ink, etc. According to the specification of the filling containers, the alkyd paint filling machines can be divided into two models: 1L-5L and 10L-25L. For applications with both 1L-5L buckets and 10L-25L buckets, one set of filling unit can be shared, and two sets of capping and capping devices can be supplied irrespectively for the two groups of buckets and lids. The number of filling nozzles can be designed according to the expected filling speed, generally between 1 and 4. For the filling of materials with volatile gases or solvents, an exhaust gas collection cover is installed at the filling nozzle to improve the working environment. After the filling action is completed, the full barrel with product can be pushed by the operator to the powered conveyor roller, and transferred to the lid placing station and capping station via the conveyor roller, where the capping job is automatically completed, and then the product is output. To save the equipment investment, the lid placing work and bucket shift work can be done manually. When it is necessary to change the specification of the filling container, only the height of the filling nozzle needs to be adjusted, and the control switch of the lid placing and capping unit can be switched to quickly adapt to the new containers. It is easy for the ordinary operators to conduct the switching process.
Features
●The filling, lid placing, capping and conveying modules of the filling machine can be customized.
●The filling and measuring process is jointly controlled by photoelectric sensors, METTLER TOLEDO load cells and GM weighing indicators to ensure precise and efficient actions.
●Suitable for: 1L-5L or 10L-25L open plastic buckets and open steel buckets
●Filling accuracy: ±0.2%
●Filling speed (take 2 filling nozzles as an example): 500~700 buckets/h
Advantages
●Easy to adjust the filling machine when changing container specifications
●Perfect filling accuracy and high filling speed
●The filling site is clean, hygienic, and free of environmental pollution.
Application
Alkyd Paint Filling Machine is mainly used in:
1. Paint and coating industry: filling alkyd resin-based decorative paints, industrial coatings and enamels.
2. Adhesives and sealants industry: suitable for similar high-viscosity materials.
3. Chemical manufacturing industry: packaging other viscous chemical products.
Our services
●Free adviceon layout of our equipment in users' workshop
●Free picking-up& drop-off service for the customers at Wuxi airport/ railway station
●Leading customers around our factory and demonstrating our products for free
●Sharing production progress at start of production, commissioningof machines, packaging and delivery for free
FAQ
●Q:Can the machine be customized as our need, such as put on our logo?
A: Yes. Customized products and services, as well as OEM are available.
●Q: If we need your help on the installation and commissioning of the machines ordered from you how can your offer the assistance?
A:All our machines have been tested and have passed the quality inspection before delivery. Most of our products are delivered in modules or as an entirety. It is easy to reassemble the machines according to our instruction and fix them with expansion bolts onto the foundation in the user's workshop. In some case, if the user needs our supervision on site we will dispatch our technicians to help our customer at the customer's expense.
●Q: Why choose us?
A:We are an AUDITED SUPPLIER audited by SGS-CSTC. All our machines have pass CE certification.We are one of High-tech Enterprises, AAA Contract and Trustworthy Enterprises.
