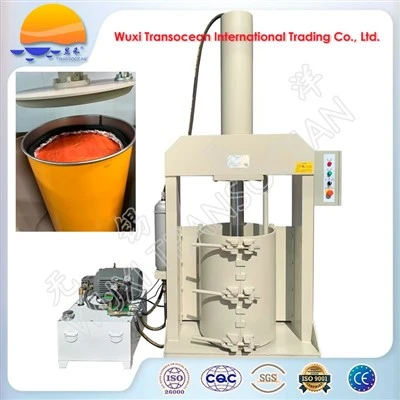

TRANSOCEAN® Hydraulic Discharge Extruders（also called Hydraulic Discharge Presses）are designed for discharging and conveying high-viscosity or thixotropic materials such as sealants, adhesives, and greases. The extruder is composed of a frame, hydraulic cylinder, pressure disc, drum fixing device, hydraulic station, accumulator, and electrical control system. It can operate as a standalone unit or in a dual-unit parallel configuration to ensure continuous operation, especially when paired with TRANSOCEAN® filling packaging machines.
Introduction
TRANSOCEAN® Hydraulic Discharge Extruders(also called Hydraulic Discharge Presses)are designed for discharging and conveying high-viscosity or thixotropic materials such as sealants, adhesives, and greases. The extruder is composed of a frame, hydraulic cylinder, pressure disc, drum fixing device, hydraulic station, accumulator, and electrical control system. It can operate as a standalone unit or in a dual-unit parallel configuration to ensure continuous operation, especially when paired with TRANSOCEAN® filling packaging machines.
Features
● Easy Installation: TRANSOCEAN® Hydraulic Discharge Extruder can be placed on a level foundation for quick setup.
● Simple Operation: The hydraulic discharge process can be started after adding HM46 anti-wear hydraulic oil to the hydraulic station, connecting the electrical wiring, and locking the material drum with the clamp.
● Energy Efficiency: The accumulator stores energy during operation, allowing the hydraulic motor to pause when the hydraulic pressure in the accumulator reaches the set value, thus saving energy.

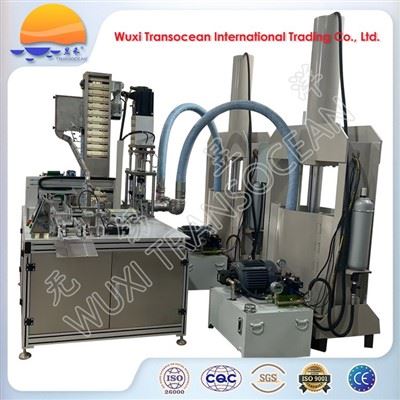

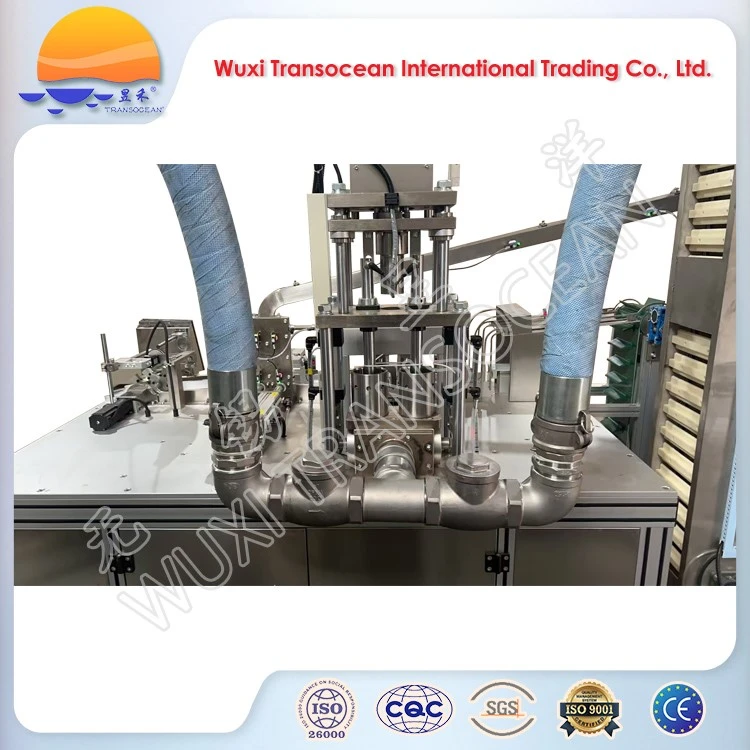

● Continuous Operation: Dual-unit parallel operation ensures uninterrupted material discharge and facilitates continuous operation of the downstream filling packaging machines.
Technical Specifications
|
Model Parameter |
YJ-200-1 |
YJ-200-2 |
YJ-200-3 |
YJ-200-4 |
|
Power supply |
AC 3P/380V+N/50Hz (customize) |
|||
|
Working pressure of hydraulic system (MPa) |
15 |
|||
|
Hydraulic system motor power (kW) |
4 |
5.5 |
7.5 |
7.5 |
|
Total pressure of hydraulic extruder (kN) |
440 |
590 |
790 |
1180 |
|
Outline dimension (mm) |
3500*1300*2250 |
|||
|
Applicable material containers |
Standard 55 gallons (208L) steel drums |
|||
Ordering Information
● Customers are advised to provide the contents and viscosity of the materials to process.
● For special materials, a standard barrel containing at least 100L of the material is required for testing.
