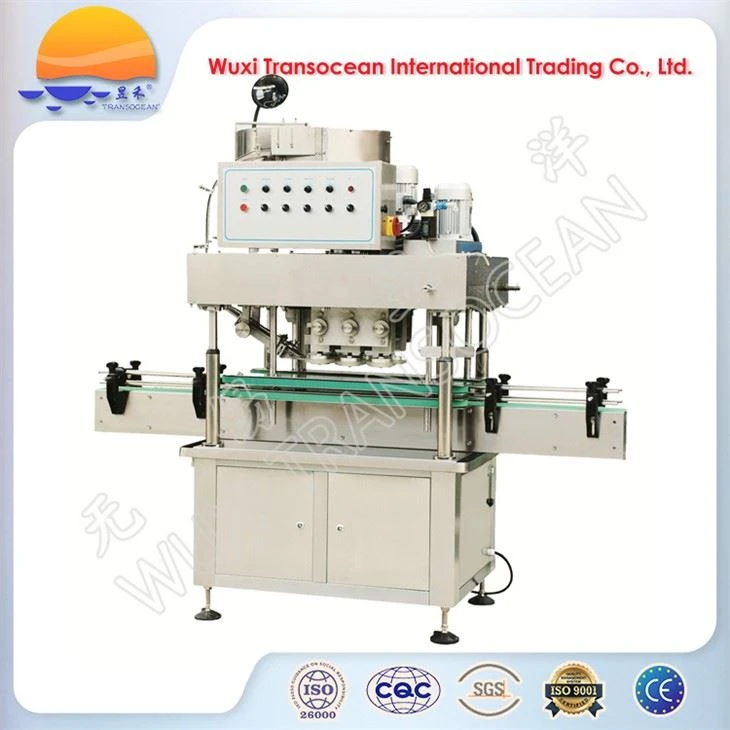

TRANSOCEAN® automatic wheel type capping machine is a versatile online six-wheel capping machine. Caps are put onto bottle neck on the conveyor by hand and then automatically screwed and sealed by the automatic in-line capping machine. It is applicable for capping of various bottles in daily chemical, food, agrochemical, and other industries. It can work with filling machines, labeling machines and other equipment to form a production line.
Introduction:
TRANSOCEAN® automatic wheel type capping machine is a versatile online six-wheel capping machine. Caps are put onto bottle neck on the conveyor by hand and then automatically screwed and sealed by the automatic in-line capping machine. It is applicable for capping of various bottles in daily chemical, food, agrochemical, and other industries. It can work with filling machines, labeling machines and other equipment to form a production line.
Features:
●The capping wheels can be adapted to fit various caps.
●Excellent capping qualification rate
●High capping the speed
Technical specifications:
|
Model |
YW-6R |
|
Outline dimension (mm) |
2000×1100×2000 |
|
Suitable for bottles |
Universal |
|
Suitable for caps |
Universal |
|
Processing capacity |
~6000 PCS/h |
|
Power supply |
1P/220V/50Hz (can be customised) |
|
Power |
2kW |
|
Air source |
6~8bar |
Configurations of main parts:
|
Item |
Specification |
|
Motor |
Mingji |
|
Inverter |
DELTA |
|
Button |
DELIX |
|
Material of rack |
SS304 + Aluminum alloy oxide |
