TRANSOCEAN® epoxy paint filling machines are applicable for quantitative packing of epoxy floor paint, epoxy primer, epoxy topcoat, epoxy intermediate paint,epoxy zinc phosphate primer and alike. Our epoxy paint filling machines have been well received by our customers.Welcome to book the filling machines from us!
Introduction:

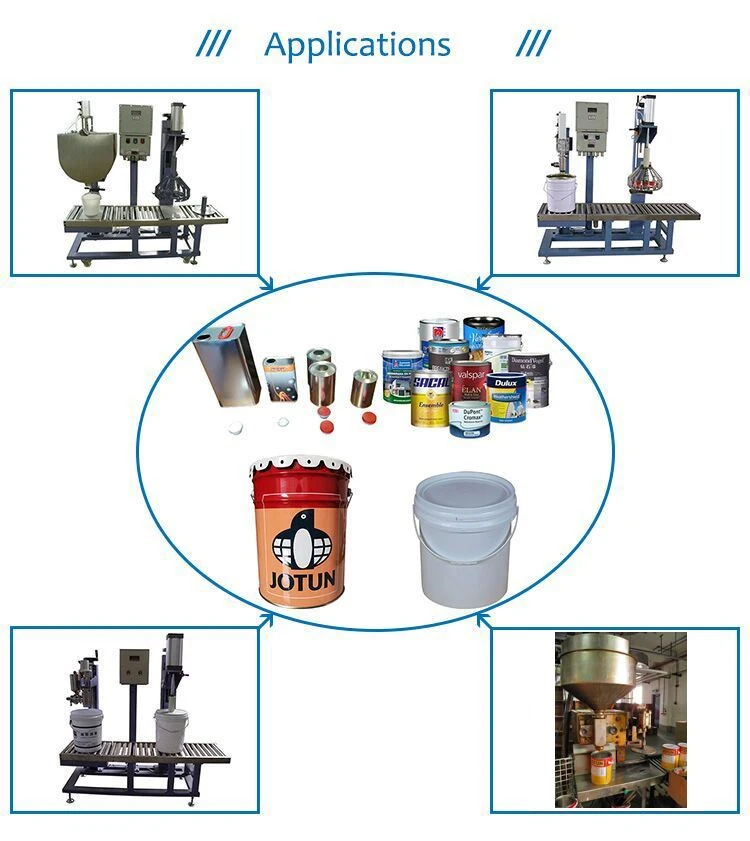

TRANSOCEAN® epoxy paint filling machine is applicable for quantitative packing of epoxy floor paint, epoxy primer, epoxy topcoat, epoxy intermediate paint, epoxy mica intermediate paint, epoxy coal tar paint, epoxy phenolic paint, epoxy zinc phosphate primer, epoxy glass scale paint, epoxy sealing paint and alike.
The component A of the epoxy paint will be packed in 10L-20L metal buckets, while the component B will be packed in 1L-5L metal buckets.
Technical specifications of filling machine of component A:
Item | Specifications | |
Model | SG-01-30 | SG-02-30 |
Quantity of filling nozzle | 1PC | 2PCS |
Packing specification | 10L-25L (Max. weighing capacity: 30kg) | |
Measurement method | Gravimetrically | |
Filling accuracy | ±2‰ | |
Filling speed | 4-5 PCS/min | 8-10 PCS/min |
Power supply | single-phase/ 220V/ 50Hz (customizable) | |
Air source | 4-6 bar | |
Technical specifications of filling machine of component B:
Item | Specifications | |||
Model | SV-01-5000 | SV-02-5000 | SG-01-10 | SG-02-10 |
Quantity of filling nozzle | 1PC | 2PCS | 1PC | 2PCS |
Packing specification | 1L-5L | 1-5L (Max. weighing capacity: 10kg) | ||
Measurement method | Volumemetrically | Gravimetrically | ||
Filling accuracy | ±1% | ±2‰ | ||
Filling speed | 6-8 PCS/min | 10-15 PCS/ min | 5-6 PCS/min | 10-12 PCS/ min |
Power supply | single-phase/ 220V/ 50Hz (customizable) | |||
Air source | 4-6bar | |||
