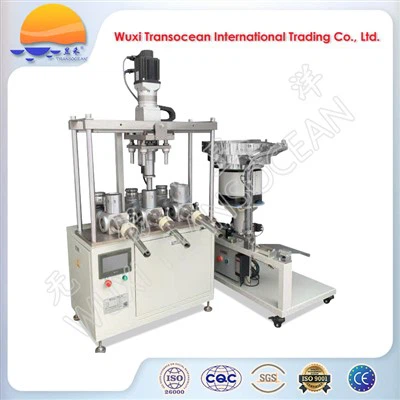

TRANSOCEAN® Semi-Automatic Cartridge Filling Capping Machine are applicable for quantitative packing of various pastes, greases, sealants, etc. with plastic/aluminum laminate tubes in the chemical, pharmaceutical, and food industries.
☆ Introduction:
● TRANSOCEAN® Semi-Automatic Cartridge Filling Capping Machine are applicable for quantitative packing of various pastes, greases, sealants, etc. with plastic/aluminum laminate tubes in the chemical, pharmaceutical, and food industries.
☆ Features:
● The cartridges are loaded onto the filling station and capping station by an operator and are automatically filled and closed.
● The volumetric metering cylinder and servo are adopted for quantitative filling. High filling measurement accuracy.
● The HMI & PLC are adopted for real-time adjustment and display of the parameters.
☆ Technical Specifications:
|
Item |
Specifications |
|
Model |
SV-01-300 |
|
Power Supply |
AC 1P/220V/50Hz (Customizable) |
|
Air Supply (bar) |
6 ~ 8 |
|
Air Consumption (m³/min) |
Max. 0.3 |
|
Target value (ml) |
Max. 350 (Adjustable) |
|
Tolerance |
±0.5% |
|
Productivity (PCS/min.) |
20~45 |
|
Applicable Tube Diameters (mm) |
Ø30~Ø50 |
|
Dimensions (L×W×H, mm) |
1250*1150*1400 |
|
N.W. (KGS) |
350 |
☆ Remark:
● The coding unit is available as an option.
