Three Roll Mill Delivered For Pakistan On Nov. 1, 2021

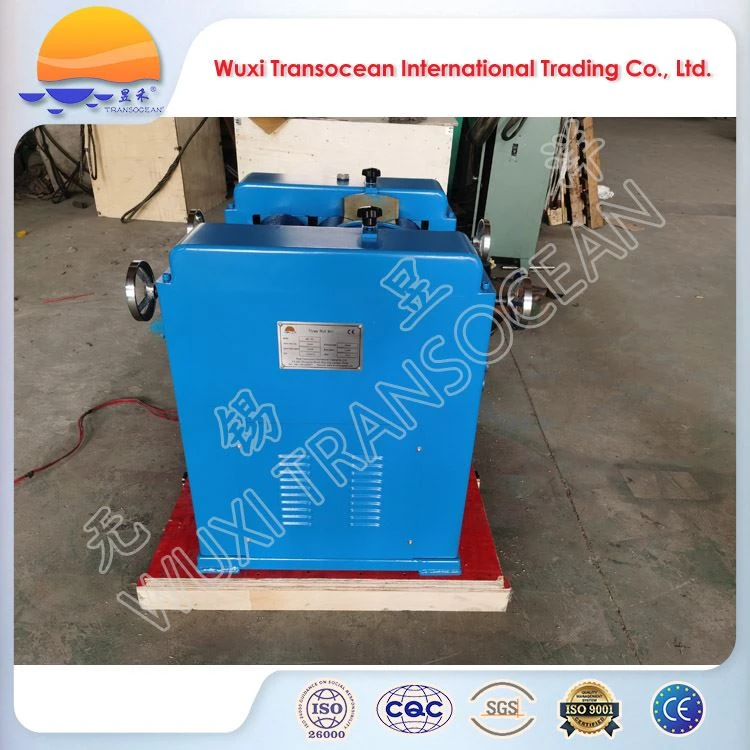

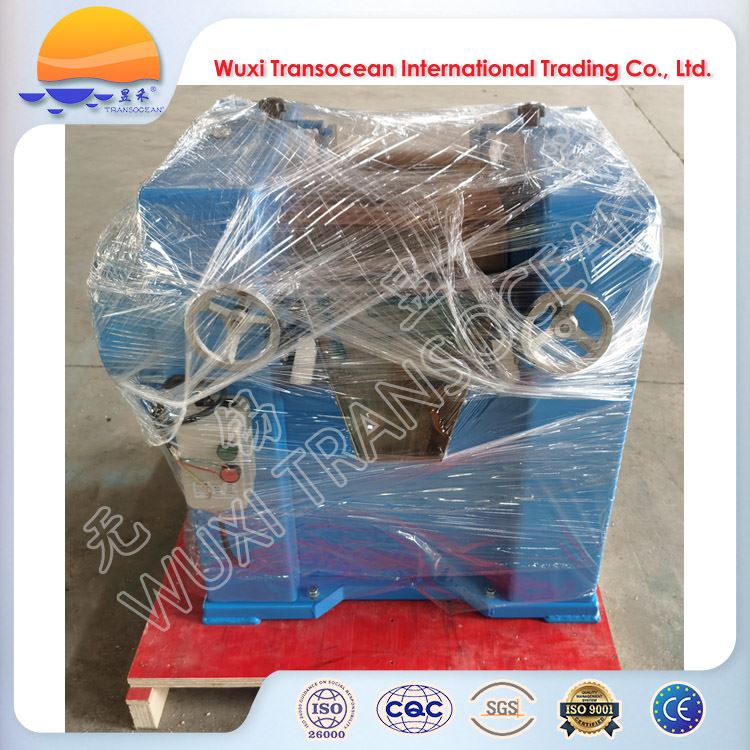

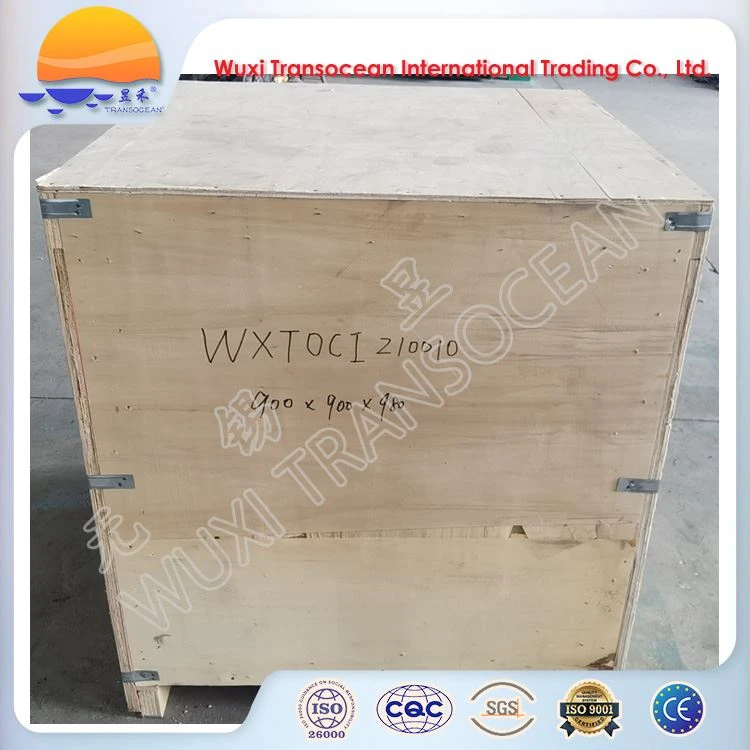

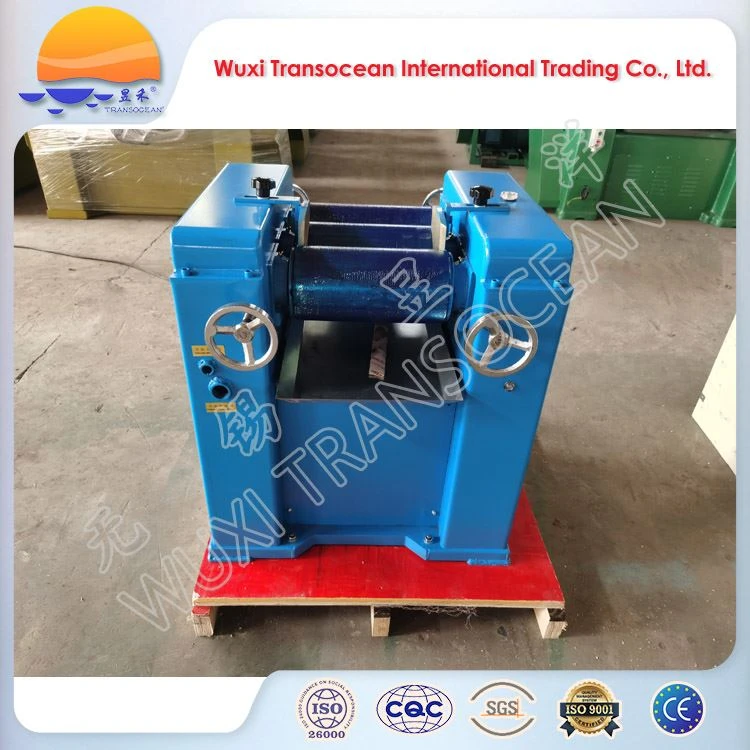

One set of TRANSOCEAN^® Three roll mill was delivered for Karachi, Pakistan on NOV. 1, 2021.

Ø  Introduction:

●TRANSOCEAN® three roll mill has three horizontal rollers i.e. feed roll, center roll and apron roll. Each roller rotates in an opposite direction from the adjacent roller with a tiny gap between them adjustable by the hydraulic system, which generates tremendous shear force to the materials to process. Viscous materials can be uniformly mixed, dispersed, squeezed, ground and homogenized by the mill. Materials are fed to the area between the feed roll and the center roll. Due to the limited space between the rollers, most of the materials are rejected to the loading area. A bit pastes running together with the center roll are subject to powerful shear and grinding force and thereafter pass through the gap and move towards the apron roll. After experiencing even higher shear force created by higher velocity of apron roll some of the pastes are passed on to the apron roll and the others are returned to the feed area. A discharge scraper automatically discharges the products from the apron roll and transfers them to the apron. The process will be repeated for several times until the solids in the products are evenly dispersed and the particle sizes are acceptable.

Ø  Applications:

●TRANSOCEAN® Three roll mills are suitable for wet grinding in the industries such as electronic thick film inks, high performance ceramics, cosmetics, plastisols, carbon/graphite, printing inks, pharmaceuticals, dental composites, sealants, foods and alike.

If you are interested in TRANSOCEAN® Three roll mill please contact us!

Our website: www.mixerbeadmill.com  www.asphaltfillingmachine.com

WhatsApp: +86-13915289911  WeChat: Arthur-YAO-CN
